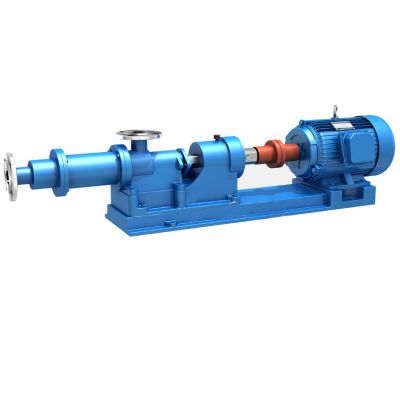

I-1B Single Screw Pump (Slurry Pump)
Key Specifications / Features
Model No.: I-1B Hits: 28
China Screw Pump Manufacturer Shinjo I-1B Single Screw Pump (Slurry Pump), Capacity 1.5 - 35 m3/h, Motor power 1.5 ~ 15 kw.
Request a quote
Share
Tags:
Detail Infomation
Introduction:
I-1b screw pump is a single screw transport pump, its main working components are eccentric screw (rotor) and the inner surface of the double helix screw bushing (stator). The working principle is that when the motor drives the pump shaft to rotate, the screw rotates around its own axis on the one hand, and on the other hand it rolls along the inner surface of the bushing, so as to form a sealed chamber of the pump. For every revolution of the screw, the liquid in the sealed chamber advances one pitch. With the continuous transmission of the screw, the liquid in spiral form from a sealed chamber to another sealed chamber, finally extruded the pump body. It has the advantages of simple structure, safe and reliable work, convenient use and maintenance, continuous and uniform discharge, stable pressure and so on.
Performance Range:
Flow: 1.5 - 35 m3/h
Head: 50 - 120 m
Size.: DN25 - 150mm
Motor power: 1.5 ~ 15 kw
Speed: 960 rpm
Applications:
Suitable for conveying food slurry and viscosity of 10000 posca Second contains solid particles or colloidal slurry solution, suspension of corrosive medium. Widely used in food, metallurgy, construction, pharmaceutical, chemical and other industrial sectors.
I-1b screw pump is a single screw transport pump, its main working components are eccentric screw (rotor) and the inner surface of the double helix screw bushing (stator). The working principle is that when the motor drives the pump shaft to rotate, the screw rotates around its own axis on the one hand, and on the other hand it rolls along the inner surface of the bushing, so as to form a sealed chamber of the pump. For every revolution of the screw, the liquid in the sealed chamber advances one pitch. With the continuous transmission of the screw, the liquid in spiral form from a sealed chamber to another sealed chamber, finally extruded the pump body. It has the advantages of simple structure, safe and reliable work, convenient use and maintenance, continuous and uniform discharge, stable pressure and so on.
Performance Range:
Flow: 1.5 - 35 m3/h
Head: 50 - 120 m
Size.: DN25 - 150mm
Motor power: 1.5 ~ 15 kw
Speed: 960 rpm
Applications:
Suitable for conveying food slurry and viscosity of 10000 posca Second contains solid particles or colloidal slurry solution, suspension of corrosive medium. Widely used in food, metallurgy, construction, pharmaceutical, chemical and other industrial sectors.
