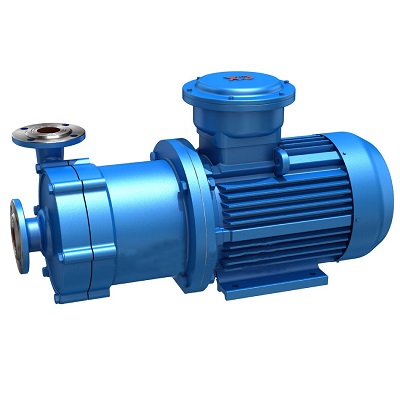

CQ Magnetic Drive Pump, Material Stainless Steel 304/316
Key Specifications / Features
Model No.: CQ Hits: 28
China Magnetic Drive Pump Manufacturer Shinjo Supplies CQ Magnetic Drive Pump, Material Stainless Steel 304/316, Flow Capacity 12~600 m3/h, Size From DN10-DN100 mm (1/4" to 4 Inch).
Request a quote
Share
Tags:
Detail Infomation
Introduction:
CQ Stainless Steel Magnetic Drive Pump is applied as the main working principle of magnetic couplings in centrifugal pump of new type pump products, pump body and pump fluids contacted parts use stainless steel material, design is very reasonable, the craft is advanced, has the full seal, no leakage, corrosion resistance and other major features, CQ stainless steel magnetic pump compact structure, beautiful appearance, small size, low noise, Stable operation, easy maintenance.
Performance Range:
Flow: 12 - 60 m3/h
Delivery Head: 5-50 m
Size.: DN10-DN100 mm
Pump housing material: Stainless steel304, 316, 316L.
Liquid Temperature: ≤80 ℃（can customize up to 200 ℃）
Applications:
This oil pump is suitable for chemical, pharmaceutical, petroleum, electroplating, food, film photographic printing, scientific research institutions, national defense industry and other units pumping acid, alkali, oil, rare and precious liquid, plating solution, volatile liquid, and circulating water equipment. Especially for flammable, explosive, corrosive, volatile liquid pumping
CQ Stainless Steel Magnetic Drive Pump is applied as the main working principle of magnetic couplings in centrifugal pump of new type pump products, pump body and pump fluids contacted parts use stainless steel material, design is very reasonable, the craft is advanced, has the full seal, no leakage, corrosion resistance and other major features, CQ stainless steel magnetic pump compact structure, beautiful appearance, small size, low noise, Stable operation, easy maintenance.
Performance Range:
Flow: 12 - 60 m3/h
Delivery Head: 5-50 m
Size.: DN10-DN100 mm
Pump housing material: Stainless steel304, 316, 316L.
Liquid Temperature: ≤80 ℃（can customize up to 200 ℃）
Applications:
This oil pump is suitable for chemical, pharmaceutical, petroleum, electroplating, food, film photographic printing, scientific research institutions, national defense industry and other units pumping acid, alkali, oil, rare and precious liquid, plating solution, volatile liquid, and circulating water equipment. Especially for flammable, explosive, corrosive, volatile liquid pumping
| Model | Size | Flow | Head | Motor | Voltage | Material | |
| In (mm) | Out (mm) | (m3/h) | (m) | (kW) | (V) | ||
| 14CQ-5 | 14 | 10 | 1.2 | 5 | 0.12 | 220/380 | Stainless Steel |
| 16CQ-8 | 16 | 12 | 1.5 | 8 | 0.18 | 220/380 | |
| 20CQ-12 | 20 | 12 | 3 | 12 | 0.37 | 220/380 | |
| 25CQ-15 | 25 | 20 | 5.4 | 15 | 1.1 | 380 | |
| 32CQ-15 | 32 | 25 | 6.5 | 15 | 1.1 | 380 | |
| 32CQ-25 | 32 | 25 | 4.8 | 25 | 1.1 | 380 | |
| 40CQ-20 | 40 | 32 | 10 | 20 | 2.2 | 380 | |
| 40CQ-32 | 40 | 32 | 11.5 | 32 | 4 | 380 | |
| 50CQ-25 | 50 | 40 | 14.4 | 25 | 4 | 380 | |
| 50CQ-32 | 50 | 40 | 13.2 | 32 | 4 | 380 | |
| 50CQ-50 | 50 | 32 | 7.8 | 50 | 5.5 | 380 | |
| 65CQ-25 | 65 | 50 | 16.8 | 25 | 5.5 | 380 | |
| 65CQ-32 | 65 | 50 | 27 | 32 | 7.5 | 380 | |
| 80CQ-32 | 80 | 65 | 50 | 32 | 11 | 380 | |
| 80CQ-50 | 80 | 65 | 50 | 50 | 15 | 380 | |
| 100CQ-32 | 100 | 80 | 60 | 32 | 15 | 380 | |
| 100CQ-50 | 100 | 80 | 60 | 50 | 18.5 | 380 | |
