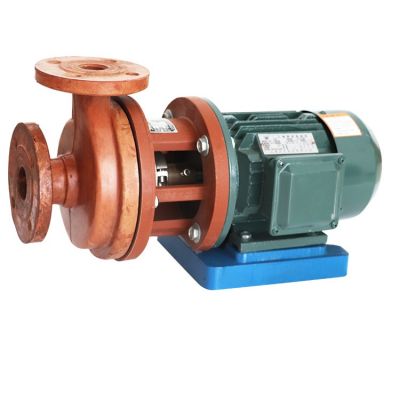

FS Glass Fiber Reinforced Polymer Centrifugal Pump, Material GFRP (FRP)
Key Specifications / Features
Model No.: FS Hits: 360
China Corrosive & Acid Resistant Pump Manufacturer Shinjo Supplies FS Glass Fiber Reinforced Polymer Centrifugal Pump, Material GFRP (FRP), Flow Capacity 2.8~130 m3/h.
Tags:
Detail Information
Introduction:
FS Type Pump is according to IS type centrifugal pump characteristics and technical requirements. made of new type polyvinyl butyral and modified phenolic glass fiber materials by high temperature molding. It has good corrosion resistance, high temperature resistance, light weight, high specific strength, no deformation, etc. FS type GLASS fiber reinforced plastic centrifugal pump contact liquid flow parts are used shaft seal, there are two common type and particle resistant machine seal (liquid pump without mechanical seal) reasonable structure, less power consumption. FS type FRP centrifugal pump breakthrough solves IS type pump in the use of material limitations.
Performance Range:
Flow: 2.8 - 130 m3/h
Delivery Head: 10-54 m
Size.: DN25-DN100 mm
Pump Material: Glass Fiber Reinforced Polymer ( GFRP )
Suitable Medium: Corrosive Medium
Applications:
Widely used for conveying corrosive medium in various chemical company.
FS Type Pump is according to IS type centrifugal pump characteristics and technical requirements. made of new type polyvinyl butyral and modified phenolic glass fiber materials by high temperature molding. It has good corrosion resistance, high temperature resistance, light weight, high specific strength, no deformation, etc. FS type GLASS fiber reinforced plastic centrifugal pump contact liquid flow parts are used shaft seal, there are two common type and particle resistant machine seal (liquid pump without mechanical seal) reasonable structure, less power consumption. FS type FRP centrifugal pump breakthrough solves IS type pump in the use of material limitations.
Performance Range:
Flow: 2.8 - 130 m3/h
Delivery Head: 10-54 m
Size.: DN25-DN100 mm
Pump Material: Glass Fiber Reinforced Polymer ( GFRP )
Suitable Medium: Corrosive Medium
Applications:
Widely used for conveying corrosive medium in various chemical company.
| Model | Capacity Q | Head H | Speed n | Power N | |
| m3/h | L/s | m | r/min | KW | |
| FS25×25-15 | 2.8 4 5.2 | 0.78 1.11 1.44 | 16 15 13.5 | 2900 | 0.75 |
| FS40×32-20 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 21 20 18 | 2900 | 2.2 |
| FS40×32-32 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 33 32 30 | 2900 | 3 |
| FS50×40-16 | 4.36 7.2 9.72 | 1.20 2.00 2.50 | 16 13 10 | 2900 | 2.2 |
| FS50×40-20 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 21.5 20 17.8 | 2900 | 3 |
| FS50×32-35 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 35 32 30 | 2900 | 4/5.5 |
| FS65×50-20 | 17.5 25 32.5 | 4.86 6.94 9.03 | 21.5 20 18 | 2900 | 3/4 |
| FS65×50-25 | 25 35 45 | 7 9.7 12.5 | 26 25 22 | 2900 | 4/5.5 |
| FS65×50-32 | 17.5 25 32.5 | 4.86 6.94 9.03 | 34.4 32 27.5 | 2900 | 5.5/7.5 |
| FS80×65-35 | 30 45 55 | 8.3 12.5 15.1 | 35 32 28 | 2900 | 7.5/11 |
| FS80×65-35A | 25 35 45 | 7 9.4 12.5 | 26 25 22 | 2900 | 5.5/7.5 |
| FS80×65-30 | 30 49 60 | 8.3 13.6 16.7 | 30 24 22 | 2900 | 7.5 |
| FS100×80-35 | 56 92.8 110 | 15.5 25.5 30.5 | 35 29 25 | 2900 | 15/22 |
| FS100×80-50 | 70 100 130 | 19.4 27.8 36.1 | 54 50 42 | 2900 | 22/30 |
