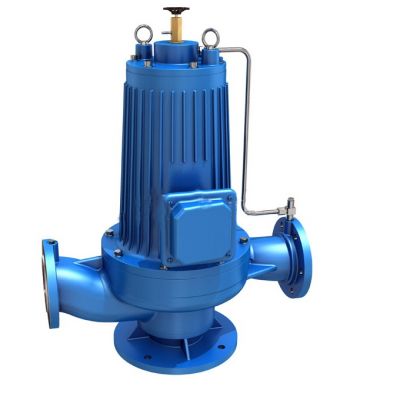

PBG Vertical Canned Motor Centrifugal Pump, Capacity 6.3 - 1080 m3/h
Key Specifications / Features
Model No.: PBG Hits: 31
China Canned Motor Pump Manufacturer Shinjo Supplies PBG Vertical Canned Motor Centrifugal Pump, Capacity 6.3 - 1080 m3/h, Delivery Head from 12.5-125 m, Size From DN40-DN300 mm.
Request a quote
Share
Tags:
Detail Infomation
Introduction:
PBG Vertical Canned Motor Centrifugal Pump does not comes with shaft seal, to avoid the leakage of the transmission medium, so it has the significant characteristics of zero leakage. The pump is pump casing and motor integrated structure, mainly composed of pump casing, impeller, coupling body, sliding bearing, stator, rotor, shielding sleeve, motor housing and other parts. Pump for vertical single stage single suction centrifugal, suction and discharge port on the same horizontal line, the pump can be installed in horizontal and vertical position of the pipeline.
Features:
Performance Range:
Flow: 6.3 - 1080 m3/h
Delivery Head: 12.5-125 m
Size.: DN40-DN300 mm
Pump Material: Cast Iron
Suitable Medium: Water
Liquid Temperature: ≤90 ℃
Applications:
For conveying clean water and other liquids with physical and chemical properties similar to clear water. Especially suitable for industrial and urban water supply and drainage, fire pressurization, high-rise building pressurization water supply, garden irrigation, long-distance transportation, hVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment support.
Note: Above is only part of the specification table, contact us to get more data.
PBG Vertical Canned Motor Centrifugal Pump does not comes with shaft seal, to avoid the leakage of the transmission medium, so it has the significant characteristics of zero leakage. The pump is pump casing and motor integrated structure, mainly composed of pump casing, impeller, coupling body, sliding bearing, stator, rotor, shielding sleeve, motor housing and other parts. Pump for vertical single stage single suction centrifugal, suction and discharge port on the same horizontal line, the pump can be installed in horizontal and vertical position of the pipeline.
Features:
- Because it can guarantee no leakage at all, it can transport the liquid which is harmful to human body and environment, equipment and expensive and easy to leak.
- No air inhalation, suitable for vacuum systems and transportation of liquid metamorphism in contact with air.
- No oil seal design, can reliably transport the general pump difficult to transport high temperature, high pressure, low temperature and temperature pressure change of the liquid.
- The bearing uses the conveying liquid to lubricate itself, without lubricating oil, so it does not pollute the conveying liquid, and avoids the trouble of regular oil filling.
Performance Range:
Flow: 6.3 - 1080 m3/h
Delivery Head: 12.5-125 m
Size.: DN40-DN300 mm
Pump Material: Cast Iron
Suitable Medium: Water
Liquid Temperature: ≤90 ℃
Applications:
For conveying clean water and other liquids with physical and chemical properties similar to clear water. Especially suitable for industrial and urban water supply and drainage, fire pressurization, high-rise building pressurization water supply, garden irrigation, long-distance transportation, hVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment support.
| Model | Capacity Q | Head | Eff | Speed | Motor | NPSHR | Weight | |
| m3/h | l/s | m | % | r/min | KW | M | Kg | |
| 40-100 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 13.2 12.5 11.3 | 48 54 53 | 1450 | 0.55 | 3.5 | 32 |
| 40-100A | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 10.6 10 9 | 52 | 1450 | 0.37 | 3.5 | 32 |
| 40-125 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 21 20 18 | 41 46 43 | 1450 | 1.1 | 34 | |
| 40-125A | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 17.6 16 14.4 | 40 45 41 | 1450 | 0.75 | 3.5 | 33 |
| 40-160 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 33 32 30 | 35 40 40 | 2900 | 2.2 | 3.5 | 47 |
| 40-160A | 4.1 5.9 7.8 | 1.14 1.64 2.17 | 29 28 26.3 | 34 39 39 | 2900 | 1.5 | 3.5 | 43 |
| 40-160B | 3.7 5.5 7.0 | 1.06 1.53 2.0 | 25.5 24 22.5 | 34 38 37 | 2900 | 1.1 | 3.5 | 38 |
| 40-200 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 51 50 48 | 26 33 32 | 2900 | 4 | 3.5 | 74 |
| 40-200A | 4.1 5.9 7.8 | 1.14 1.64 2.17 | 45 44 42 | 26 31 30 | 2900 | 3 | 3.5 | 62 |
| 40-200B | 3.7 5.3 7.0 | 1.05 1.47 1.94 | 38 36 34.5 | 29 | 2900 | 2.2 | 3.5 | 52 |
| 40-250 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 82 80 74 | 24 28 28 | 2900 | 7.5 | 3.5 | 105 |
| 40-250A | 4.1 5.9 7.8 | 1.14 1.64 2.17 | 72 70 65 | 24 28 27 | 2900 | 5.5 | 3.5 | 98 |
| 40-250B | 3.8 5.5 7.2 | 1.06 1.53 1.94 | 61.5 60 56 | 23 27 26 | 2900 | 4 | 3.5 | 77 |
| 40-100(Ⅰ) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 13.2 12.5 11.3 | 55 62 60 | 1450 | 1.1 | 3.5 | 34 |
| 40-100(Ⅰ)A | 8 11 14.5 | 2.22 3.05 4.03 | 10.6 10 9 | 60 | 1450 | 0.75 | 3.5 | 32 |
| 40-125(Ⅰ) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 21.2 20 17.8 | 49 58 57 | 1450 | 1.5 | 3.5 | 38 |
| 40-125(Ⅰ)A | 8 11 14.5 | 2.22 3.05 4.03 | 17 16 14 | 57 | 1450 | 1.1 | 3.5 | 33 |
| 40-160(Ⅰ) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 33 32 30 | 45 52 51 | 2900 | 3 | 3.5 | 56 |
| 40-160(Ⅰ)A | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 29 28 26 | 44 51 50 | 2900 | 2.2 | 3.5 | 47 |
| 40-160(Ⅰ)B | 7.3 10.4 13.5 | 2.38 2.89 3.75 | 23 22 20.5 | 50 | 2900 | 1.5 | 3.5 | 43 |
| 40-200(Ⅰ) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 51.2 50 48 | 38 46 46 | 2900 | 5.5 | 3.5 | 85 |
| 40-200(Ⅰ)A | 8.3 11.7 15.3 | 2.31 3.25 4.25 | 45 44 42 | 37 45 45 | 2900 | 4 | 3.5 | 75 |
| 40-200(Ⅰ)B | 7.5 10.6 13.8 | 2.08 2.94 3.83 | 37 36 34 | 44 | 2900 | 3 | 3.5 | 63 |
| 40-250(Ⅰ) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 81.2 80 77.5 | 31 38 40 | 2900 | 11 | 3.5 | 145 |
