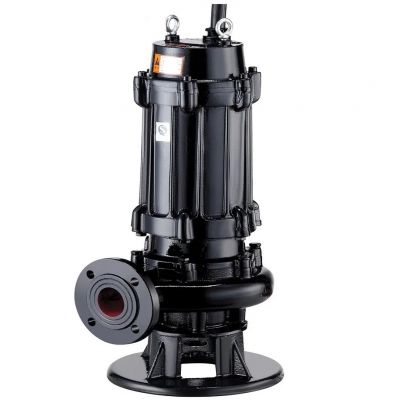

WQ Submersible Sewage Pump, Capacity 10~6000 M3/h

WQ Submersible Sewage Pump, Capacity 10~6000 M3/h

WQ Submersible Sewage Pump, Capacity 10~6000 M3/h

Key Specifications / Features

Model No.: WQ Hits: 121

China Submersible Sewage Pump Manufacturer Shinjo Supplies WQ Submersible Sewage Pump, Capacity 10~6000 M3/h, size from DN25 to DN600 mm.
Request a quote Share
Tags:

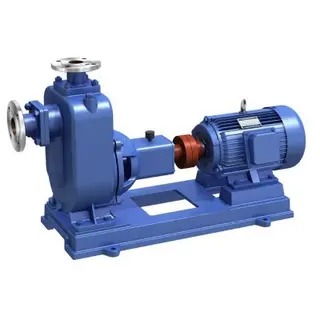

Next: ZW Horizontal Self-priming Sewage Pump, Cast Iron / Stainless Steel

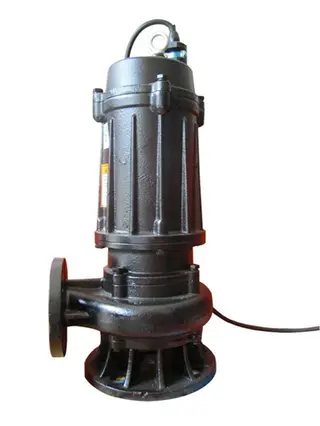

Previous: Stainless Steel Non Clogging Sludge Pump, 7-35m, 10-950 m3/h

Detail Infomation

Introduction:

WQ submersible sewage pump is currently more advanced and ideal drainage equipment. The pump uses a swirling downdraft structure, non-clogging, wear-resistant, reliable operation, easy maintenance, drains thoroughly, apply a wide range of other advantages.

This pump can also be made of stainless steel impeller and the most advanced mechanical seal life of more than 3000 hours. The pump is widely used for pumping discharge of industrial and domestic wastewater, sewage, including those containing pulp, wood titanite, starch, silt, gravel, and another short fiber slurry, solid but also liquid manure and urine, is industrial, agricultural, urban, ideal for the construction industry sewage water tools.

Performance Range:
  • Flow: 5 - 6000 m3/h
  • Delivery Head: 5-65m
  • Outlet Dia.: DN25-DN600mm
  • Working Pressure (Max): 1.2Mpa
  • Liquid Temperature: 0 -55 C
Application:
Industrial water supply and discharge, Irrigation & Drainage, flood disposal, Oil, gas & petrol liquid processing, Hot water & raw water transferring, Chemical & Seawater transferring, Power station water circulation, Factory & residential fire fighting, Mining water supply & drainage, Civil water supply & treatment

WQ Submersible Sewage Pump​ Structure Drawing:

WQ Submersible Sewage Pump​ Structure Drawing:

WQ Submersible Sewage Pump​ Performance Curve:

WQ Submersible Sewage Pump​ Performance Curve

Specification data table:
Model Voltage Motor Power Outlet Guide Rail Fitting Max. flow Max. Head Speed Impeller passage
V KW HP in m³ /h m r.p.m mm
50WQ10-10-0.75 380 0.75 1 2 50-50 28 13 3000 25
50WQD10-10-0.75 220 0.75 1 2 50-50 28 13 3000 25
50WQ8-16-1.1 380 1.1 1.5 2 50-50 25 19 3000 20
50WQD8-16-1.1 220 1.1 1.5 2 50-50 25 19 3000 20
65WQ15-10-1.1 380 1.1 1.5 2 1/2 50-65 28 15 3000 25
65WQD15-10-1.1 220 1.1 1.5 2 1/2 50-65 28 15 3000 25
50WQ8-20-1.5 380 1.5 2 2 50-50 25 22 3000 20
50WQD8-20-1.5 220 1.5 2 2 50-50 25 22 3000 20
65WQ15-15-1.5 380 1.5 2 2 1/2 50-65 35 20 3000 25
65WQD15-15-1.5 220 1.5 2 2 1/2 50-65 35 20 3000 25
65WQ15-20-2.2 380 2.2 3 2 50-50 38 23 3000 25
65WQ25-17-2.2 380 2.2 3 2 1/2 65-65 44 22 3000 25
80WQ40-9-2.2 380 2.2 3 3 65-80 65 16 3000 30
50WQ15-26-3 380 3 4 2 50-50 47 29 3000 25
65WQ25-22-3 380 3 4 2 1/2 65-65 55 26 3000 30
80WQ40-13-3 380 3 4 3 80-80 72 21 3000 30
100WQ60-9-3 380 3 4 4 80-100 88 19 3000 30
65WQ25-28-4 380 4 5.5 2 1/2 65-65 55 32 3000 25
80WQ40-18-4 380 4 5.5 3 80-80 80 24 3000 30
100WQ60-13-4 380 4 5.5 4 80-100 89 24 3000 30
50WQ15-40-5.5 380 5.5 7.5 2 50-50 50 43 3000 25
80WQ30-30-5.5 380 5.5 7.5 3 80-80 47 37 3000 30
100WQ65-15-5.5 380 5.5 7.5 4 100-100A 108 25 3000 30
100WQ56-22-7.5 380 7.5 10 4 100-100A 90 31 3000 35
150WQ100-10-7.5 380 7.5 10 6 150-150 140 20 3000 35
100WQ65-15-5.5(4P) 380 5.5 7.5 4 100-100 145 21 1500 55
150WQ110-10-5.5(4P) 380 5.5 7.5 6 150-150 200 16 1500 55
100WQ100-15-7.5(4P) 380 7.5 10 4 100-100 170 21 1500 55
150WQ150-10-7.5(4P) 380 7.5 10 6 150-150 220 16 1500 75
100WQ100-25-11(4P) 380 11 15 4 100-100 180 26 1500 50
150WQ130-15-11(4P) 380 11 15 6 150-150 270 20 1500 50
200WQ300-7-11(4P) 380 11 15 8 200-200 360 18 1500 65
100WQ100-30-15(4P) 380 15 20 4 100-100 190 32 1500 50
150WQ130-20-15(4P) 380 15 20 6 150-150 300 23 1500 50
200WQ250-11-15(4P) 380 15 20 8 200-200 380 22 1500 65
150WQ180-20-18.5(4P) 380 18.5 25 6 150-150 300 26 1500 50
200WQ250-15-18.5(4P) 380 18.5 25 8 200-200 400 25 1500 65
150WQ180-25-22(4P) 380 22 30 6 150-150 330 28 1500 50
200WQ300-15-22(4P) 380 22 30 8 200-200 450 28 1500 65
150WQ180-30-30(4P) 380 30 40 6 150-150 350 38 1500 70
200WQ250-22-30(4P) 380 30 40 8 200-200 500 34 1500 70
250WQ600-9-30(4P) 380 30 40 10 250-250 600 28 1500 70
300WQ800-7-30(4P) 380 30 40 12 300-300 1000 18 1500 80
150WQ160-45-37(4P) 380 37 50 6 150-150 380 43 1500 70
200WQ350-25-37(4P) 380 37 50 8 200-200 500 38 1500 70
250WQ600-12-37(4P) 380 37 50 10 250-250 720 32 1500 70
300WQ900-8-37(4P) 380 37 50 12 300-300 1200 22 1500 80
200WQ380-28-45(4P) 380 45 60 8 200-200 800 38 1500 70
250WQ600-15-45(4P) 380 45 60 10 250-250 600 43 1500 70
300WQ800-12-45(4P) 380 45 60 12 300-300 1300 25 1500 80
