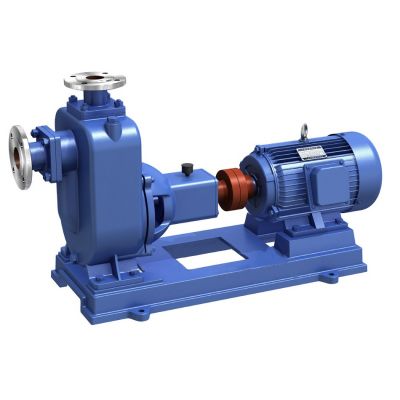

ZW Horizontal Self-priming Sewage Pump, Cast Iron / Stainless Steel
Key Specifications / Features
Model No.: ZW Hits: 33
China Self-priming Sewage Pump Manufacturer Shinjo Supplies ZW Horizontal Self-priming Sewage Pump, Cast Iron / Stainless Steel, Head up to 70 meters.
Request a quote
Share
Tags:
Detail Infomation
Performance range:
It is applicable for city environmental protection, building, fire control, chemical engineering, pharmacy, dyestuff, printing and dyeing, brewage, electricity, electroplating, paper making, petroleum, mine, equipment cooling, tanker discharging, etc.
It is applicable for clear water, seawater, liquid-containing acid or alkali chemical medium, and generally pasty slurry (medium viscosity ≤ 100cP and solid content less than 30%).
When it's mouted with an arm sprayer, it can jet the water into the air to disperse into little raindrops for spraying, so it is a good tool for farm, nursery, orchar and tea garden. 4. It can work with any types and specifications of filter press, so it is an ideal type to deliver the slurry to the filter for the filter pressing.
ZW Horizontal Self-priming Sewage Pump Structure Drawing :
ZW Horizontal Self-priming Sewage Pump Performance Curve :
- Self-priming head: 6.5m
- Flowrate: up to 800 m3/h
- Head: up to 70m
- Liquid Temperature: ≤80 ºC
- Working pressure: 1.6 MPa
It is applicable for city environmental protection, building, fire control, chemical engineering, pharmacy, dyestuff, printing and dyeing, brewage, electricity, electroplating, paper making, petroleum, mine, equipment cooling, tanker discharging, etc.
It is applicable for clear water, seawater, liquid-containing acid or alkali chemical medium, and generally pasty slurry (medium viscosity ≤ 100cP and solid content less than 30%).
When it's mouted with an arm sprayer, it can jet the water into the air to disperse into little raindrops for spraying, so it is a good tool for farm, nursery, orchar and tea garden. 4. It can work with any types and specifications of filter press, so it is an ideal type to deliver the slurry to the filter for the filter pressing.
ZW Horizontal Self-priming Sewage Pump Structure Drawing :
ZW Horizontal Self-priming Sewage Pump Performance Curve :
| Model | Flow | Head | Speed | Power | Eff. | NPSHr | height | time | (kg) |
| (m3/h) | (m) | (r/min) | (kW) | (%) | (m) | (m) | (min/5m) | ||
| ZW25-8-15 | 8 | 15 | 2900 | 1.5 | 45 | 2 | 5.5 | 3 | 100 |
| ZW32-5-20 | 5 | 20 | 2900 | 2.2 | 45 | 2.5 | 5.5 | 3 | 100 |
| ZW32-10-20 | 10 | 20 | 2900 | 2.2 | 45 | 2.5 | 5.5 | 3 | 100 |
| ZW32-9-30 | 9 | 30 | 2900 | 3 | 48 | 2.5 | 5.5 | 3 | 120 |
| ZW40-10-20 | 10 | 20 | 2900 | 2.2 | 45 | 2.5 | 5.5 | 3 | 100 |
| ZW40-20-15 | 20 | 15 | 2900 | 2.2 | 45 | 2.5 | 5.5 | 3 | 100 |
| ZW40-15-30 | 15 | 30 | 2900 | 3 | 48 | 2.5 | 5.5 | 3 | 120 |
| ZW50-10-20 | 10 | 20 | 2900 | 2.2 | 45 | 2.5 | 5.5 | 3 | 100 |
| ZW50-20-12 | 20 | 12 | 2900 | 2.2 | 45 | 2.5 | 5.5 | 3 | 100 |
| ZW50-15-30 | 15 | 30 | 2900 | 3 | 48 | 2.5 | 5.5 | 3 | 120 |
| ZW50-20-35 | 20 | 35 | 2900 | 5.5 | 48 | 2.5 | 5.5 | 3 | 150 |
| ZW65-30-18 | 30 | 18 | 1450 | 4 | 45 | 2.5 | 5.5 | 3 | 200 |
| ZW65-25-30 | 25 | 30 | 2900 | 5.5 | 50 | 3 | 5.5 | 3 | 200 |
| ZW65-25-40 | 25 | 40 | 2900 | 7.5 | 50 | 3 | 5.5 | 2 | 200 |
| ZW65-40-25 | 40 | 25 | 2900 | 7.5 | 50 | 3 | 5.5 | 2 | 200 |
| ZW65-65-25 | 65 | 25 | 2900 | 7.5 | 52 | 3 | 5.5 | 2 | 240 |
| ZW80-40-16 | 40 | 16 | 1450 | 4 | 50 | 3 | 5 | 3 | 240 |
| ZW80-40-25 | 40 | 25 | 2900 | 7.5 | 50 | 3 | 5.5 | 2 | 200 |
| ZW80-25-40 | 25 | 40 | 2900 | 7.5 | 50 | 3 | 5.5 | 2 | 200 |
| ZW80-65-25 | 65 | 25 | 2900 | 7.5 | 52 | 3 | 5.5 | 2 | 240 |
| ZW80-80-35 | 80 | 35 | 2900 | 15 | 45 | 3 | 5.5 | 3 | 285 |
| ZW80-80-35 | 80 | 35 | 1450 | 15 | 50 | 3 | 5.5 | 2 | 450 |
| ZW80-50-60 | 50 | 60 | 2900 | 22 | 55 | 3 | 5 | 3 | 340 |
| ZW100-100-15 | 100 | 15 | 1450 | 7.5 | 50 | 4 | 5.5 | 3 | 300 |
| ZW100-80-20 | 80 | 20 | 1450 | 7.5 | 53 | 4 | 5.5 | 3 | 300 |
| ZW100-100-20 | 100 | 20 | 1450 | 11 | 53 | 4 | 5.5 | 3 | 340 |
| ZW100-100-30 | 100 | 30 | 2900 | 22 | 53 | 4 | 5.5 | 2 | 510 |
| ZW125-120-20 | 120 | 20 | 1450 | 15 | 55 | 4.5 | 5.5 | 2 | 500 |
| ZW150-180-14 | 180 | 14 | 1450 | 15 | 60 | 5 | 5.5 | 3.5 | 500 |
| ZW150-180-20 | 180 | 20 | 1450 | 22 | 60 | 5 | 5 | 3 | 570 |
| ZW150-180-30 | 180 | 30 | 1450 | 37 | 65 | 5 | 5 | 3 | 680 |
| ZW150-180-38 | 180 | 38 | 1450 | 55 | 45 | 5 | 5 | 3.5 | 800 |
| ZW200-280-14 | 280 | 14 | 1450 | 22 | 65 | 5 | 5 | 3 | 700 |
| ZW200-280-28 | 280 | 28 | 1450 | 55 | 55 | 4.8 | 5.2 | 3 | 940 |
| ZW250-420-20 | 420 | 20 | 1450 | 55 | 61 | 6 | 4.5 | 2.5 | 1150 |
| ZW300-800-14 | 800 | 14 | 1450 | 55 | 65 | 6 | 4.5 | 2.5 | 1400 |
