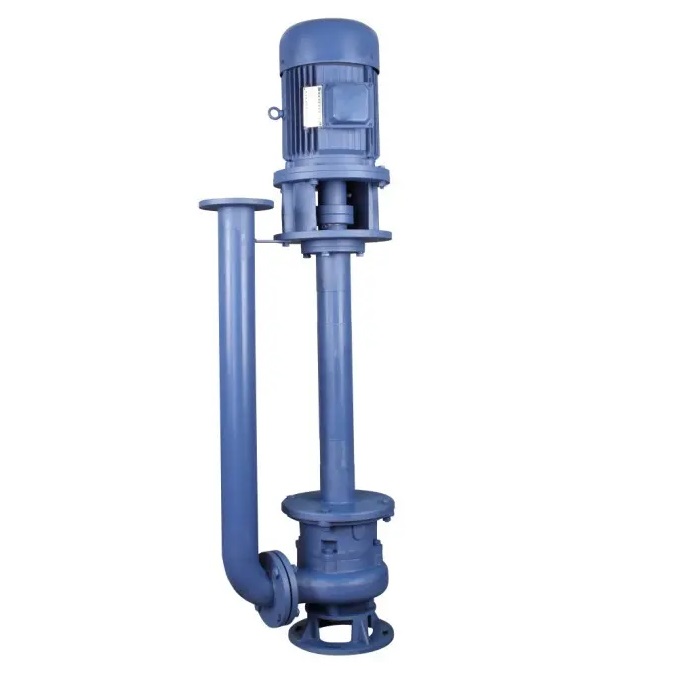

YW Semi-submersible Sewage Pump, Flow Rate(Q) 9~460 m3/h

YW Vertical Submersible Sewage Pump, Flow Rate(Q) 8~1000 m3/h

YW Vertical Submersible Sewage Pump, Flow Rate(Q) 8~1000 m3/h

Key Specifications / Features

Model No.: YW Hits: 82

China Submersible Sewage Pump Manufacturer Shinjo Supplies YW Vertical Submersible Sewage Pump, Flow Rate(Q) 8~1000 m3/h, size from DN25 to DN350 mm.
Request a quote Share
Tags:

Previous: QJ/QJR Submersible Borehole Pump (Deep Well Pump), Size DN550

Detail Infomation

Introduction:

YW series Vertical Submersible Sewage Pumps adopt unique structure of impeller and new type double mechanical seal, can effectively convey liquids containing solids and short fiber. Compared with the traditional impeller, the pump impeller have big channel,  very good flow passing ability, matches with reasonable volute chamber, let the pump with high efficiency, no vibration.

Performance range:
  • Flow rate:Q=8~1000 (m³/h)
  • Total head:H=6~65 (m)
  • Pump speed:n=1450/2900 rpm
  • Fluid s.g.:y ≤1.5
  • Fluid temperature:T=0~80ºC
  • Pump diameter:50~200mm
Application:
This series of pump is mainly used in industries of oil refinery, petrochemical industry, coal chemical industry, power plant, environmental protection engineering, polluted water treatment and cement plant, etc. Suitable for transporting all kinds of clean, particle free or particle contained slurry, polluted water, neutral or corrosive medium.

YW Vertical Submersible Sewage Pump​ Structure Drawing:

YW Vertical Submersible Sewage Pump​ Structure Drawing

YW Vertical Submersible Sewage Pump​ Structure Performance Curve:

YW Vertical Submersible Sewage Pump​ Structure Performance Curve

Specification data table:
Model Size(mm) Capacity（m3/h） Head（m） Speed（r/min） Power（kw） Eff（%） Pump Controller auto coupler wq
25yw8-22-1.1 25 8 22 2825 1.1 38.1 qzd-1.1 /
32yw12-15-1.1 32 12 15 2825 1.1 40 qzd-1.1 /
40yw15-15-1.5 40 15 15 2840 1.5 45.1 qzd-1.5 40
40yw15-30-2.2 40 15 30 2840 2.2 18 qzd-2.2 40
50yw20-7-0.75 50 20 7 1390 0.75 54 qzd-0.75 40
50yw10-10-0.75 50 10 10 1390 0.75 56 qzd-0.75 50
50yw20-15-1.5 50 20 15 2840 1.5 55 qzd-1.5 50
50yw15-25-2.2 50 15 25 2840 2.2 56 qzd-2.2 50
50yw18-30-3 50 18 30 2880 3 58 qzd-3.0 50
50yw25-32-5.5 50 25 32 2900 5.5 53 qzd-5.5 50
50yw20-40-7.5 50 20 40 2900 7.5 55 qzd-7.5 50
65yw25-15-2.2 65 25 15 2840 2.2 52 qzd-2.2 50
65yw37-13-3 65 37 13 2880 3 55 qzd-3.0 65
65yw25-30-4 65 25 30 2890 4 58 qzd-4.0 65
65yw30-40-7.5 65 30 40 2900 7.5 56 qzd-7.5 65
65yw35-50-11 65 35 50 2930 11 60 qzd-11 65
65yw35-60-15 65 35 60 2930 15 63 qzd-15 65
80yw40-7-2.2 80 40 7 1420 2.2 52 qzd-2.2 65
80yw43-13-3 80 43 13 2880 3 50 qzd-3.0 80
80yw40-15-4 80 40 15 2890 4 57 qzd-4.0 80
80yw65-25-7.5 80 65 25 2900 7.5 56 qzd-7.5 80
100yw80-10-4 100 80 10 1440 4 62 qzd-4.0 80
100yw110-10-5.5 100 110 10 1440 5.5 66 qzd-5.5 100
100yw100-15-7.5 100 100 15 1440 7.5 67 qzd-7.5 100
100yw85-20-7.5 100 85 20 1400 7.5 68 qzd-7.5 100
100yw100-25-11 100 100 25 1460 11 65 jj1-11 100
100yw100-30-15 100 100 30 1470 15 66 jj1-26 100
100yw100-35-18.5 100 100 35 1460 18.5 65 jj1-18.5 100
125yw130-15-11 125 130 15 1460 11 62 jj1-11 100
125yw130-25-15 125 130 20 1440 15 63 jj1-15 125
150yw145-6-7.5 150 145 6 1470 7.5 63 qzd7.5 125
150yw180-15-15 150 180 15 1470 15 65 jj1-15 150
150yw180-20-18.5 150 180 20 1470 18.5 75 jj1-18.5 150
150yw180-25-22 150 180 25 1470 22 76 jj1-22 150
150yw130-30-22 150 130 30 1470 22 75 jj1-22 150
150yw180-30-30 150 180 30 970 30 73 jj1-30 150
150yw200-30-37 150 200 30 970 37 70 jj1-37 150
200yw300-7-11 200 300 7 1470 11 73 jj1-11 150
200yw250-11-15 200 250 11 1470 15 74 jj1-15 200
200yw400-10-22 200 400 10 1470 22 76 jj1-22 200
200yw400-13-30 200 400 13 1470 30 73 jj1-30 200
200yw250-11-15 200 250 15 1470 18.5 72 jj1-18.5 200
200yw300-15-22 200 300 15 1470 22 73 jj1-22 200
200yw250-22-30 200 250 22 1470 30 71 jj1-30 200
200yw350-25-37 200 350 25 1470 37 75 jj1-37 200
200yw400-30-55 200 400 30 1480 55 70 jj1-55 200
250yw600-9-30 250 600 9 980 30 74 jj1-30 250
250yw600-12-37 250 600 12 1480 37 78 jj1-37 250
250yw600-15-45 250 600 15 1480 45 75 jj1-45 250
250yw600-20-55 250 600 20 1480 55 73 jj1-55 250
250yw600-25-75 250 600 25 1480 75 73 jj1-75 250
300yw800-12-45 300 800 12 1480 45 76 jj1-45 300
300yw500-15-45 300 500 15 980 45 70 jj1-45 300
300yw800-15-55 300 800 15 980 55 73 jj1-55 300
300yw600-20-55 300 600 20 980 55 75 jj1-55 300
300yw800-20-75 300 800 20 980 75 78 jj1-75 300
300yw950-20-90 300 950 20 980 90 80 jj1-90 300
300yw1000-25-110 300 1000 25 980 110 82 jj1-110 300
300yw1100-10-55 300 1100 10 980 55 84.5 jj1-55 300
350yw1500-15-90 350 1500 15 980 90 83.1 jj1-90 350
350yw1200-18-90 350 1200 18 980 90 83.2 jj1-90 350
350yw1100-28-132 350 1100 28 740 132 78.5 jj1-132 350
350yw1000-36-160 350 1000 36 740 160 82.1 jj1-160 350
